Add Zscaler Internet Access (ZIA)

ASMS supports ZIA as follows:

  • Policy Visibility for policy type: Firewall Policy Control

  • Report Generation

  • Topology including VPN tunnels

  • Change analysis and monitoring

  • Risks Calculation

  • Map Visibility (IPSec and GRE tunnels)

  • Regulatory Compliance

  • Traffic Simulation Query

  • Policy Optimization

The following sections describe how ASMS connects to ZIA public services:

Network connectivity

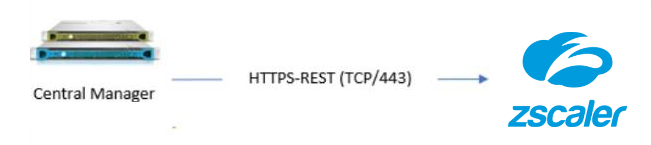

From AFA, we communicate with ZIA via Rest API over HTTPS protocol.

Required user role permissions

ASMS requires minimal, view-only access permissions to access Zscaler tenant data and perform data collection.

Add a ZIA service to ASMS

Do the following:

  1. Create a ZIA admin role (read-only)

    1. Log in to the ZIA Admin Portal (or Experience Center, depending on your tenant).

    2. Navigate to Administration>Authentication>Administration Controls>Role Management>Add Administrator Role.

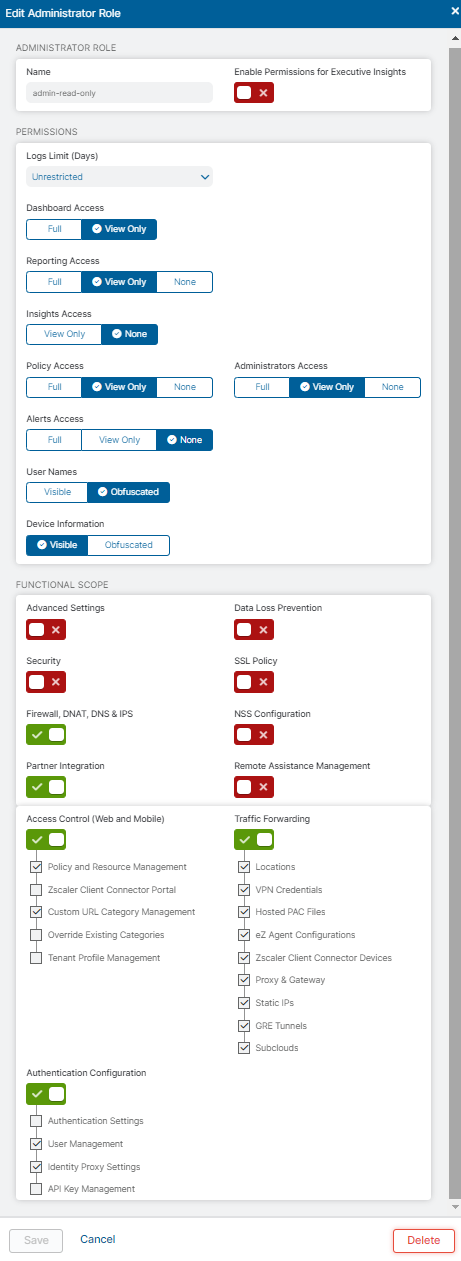

    3. In the Permissions section, set minimum access permissions as per the above screenshot.

    4. In the tabbed lower section, ensure that configurations in all sub-sections are set to View Only.

  2. Provision the AlgoSec admin identity in ZIdentity

    1. Create the user in your external IdP and provision it to ZIdentity (recommended), or create it directly in ZIdentity if your process allows it.

    2. Zscaler supports adding users locally and also managing users via SCIM / JIT provisioning.

      Note: If your organization standard is “no local users,” do not create a local (non-IdP) ZIdentity user for AlgoSec.

  3. Assign the ZIA role to the AlgoSec identity via ZIdentity (Administrative Entitlements)

    1. Log in to the ZIdentity Admin Portal.

    2. Navigate to Administration > Entitlements > Administrative.

    3. Select the ZIA service.

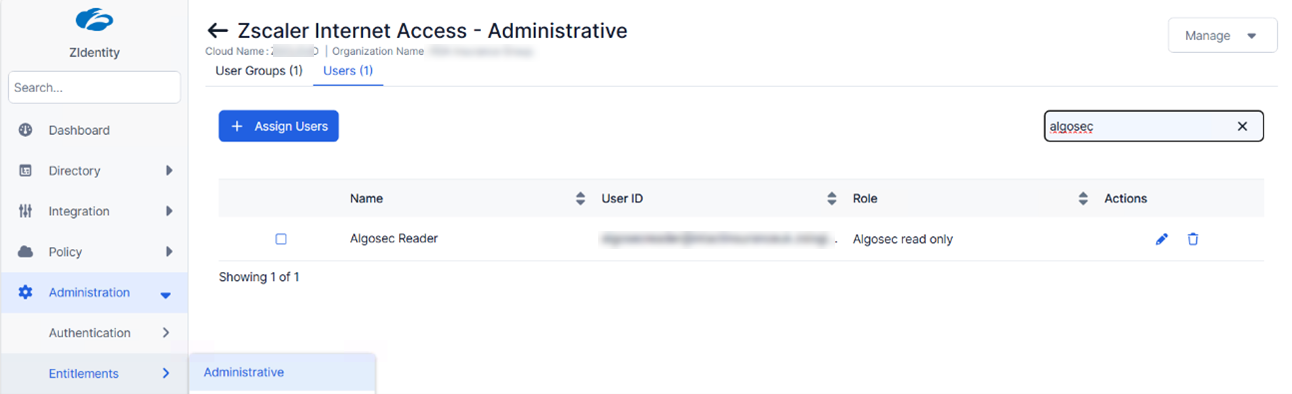

    4. On the Users (or User Groups) tab, click Assign Users (or Assign Groups).

    5. Select the AlgoSec user (or group) and choose the ZIA role you created in step 1.

    6. Save.

      Tip: If the new ZIA role does not appear immediately in ZIdentity, perform a manual sync from the View Roles page.

  4. Get a Zscaler API key

    1. Get the Zscaler Cloud Service API Security Key as described in Zscaler documentation.

      Note: ZIA legacy API authentication uses a combination of the API key plus admin username and password. Ensure the identity you provisioned supports this API authentication model.

  5. Add ZIA in AFA (ASMS)

    1. In AFA, navigate to Administration > Devices Setup.

    2. From New, select Devices.

    3. Select Zscaler > Zscaler Internet Access.

    4. Enter:

      • Display name: Add a meaningful name. The display name must not contain spaces.

      • User name: The Login ID of the ZIdentity user that has the ZIA Administrative Entitlement (for example, user_name@domain_name)

      • Password: The password used for ZIA API authentication

      • Zscaler Cloud Name (example: zscaler.net, zscalerone.net)

      • API Key: The ZIA API Security Key

  6. Configure optional proxy and monitoring/permissions options as needed.

  7. Click Finish
