Flow Logs Analysis (Azure)

Flow Log Analysis is a capability within Application Discovery that reveals the real network behavior of your cloud applications. By analyzing Azure VNet flow logs, ACE visualizes how workloads communicate, detects unexpected external traffic, and helps you understand the operational context of your microservices.

Flow logs function like an X-ray: they don’t interpret or score the traffic. They simply show what is happening. Whether traffic is legitimate, unintended, or potentially malicious, Flow Log Analysis provides transparency so engineers can validate expected behavior, uncover anomalies, and make informed architectural and security decisions.

Working With Flow Log Analysis

Your cloud environment constantly generates traffic: microservices calling one another, workloads accessing databases, and users interacting with public-facing services. Much of this is normal, but flow logs often uncover unexpected patterns, such as:

• External IP addresses reaching workloads that were not intended to be exposed

• Microservices communicating in undocumented or surprising ways

• Large volumes of inbound global traffic caused by an overly open security group

• Potential attacker behavior (for example, data exfiltration), which appears in flow logs even when no alerting exists

Flow Log Analysis helps you detect these behaviors and understand their impact on your applications.

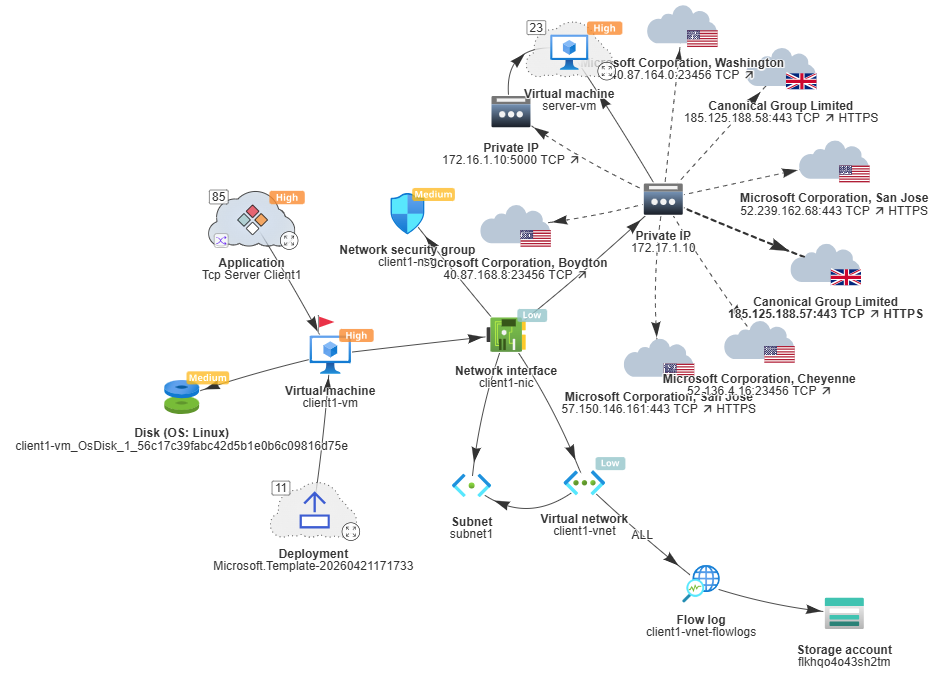

All traffic-derived connections appear as dotted lines in the graph below.

Flow logs also expose port and protocol information, allowing deeper insight into the type of service or interaction taking place.

Visibility Over Time

ACE Cloud App Analyzer uses a sliding 7-day window of flow logs analysis. That means:

• You see all traffic observed within the last seven days

• Suspicious or unexpected activity within that timeframe is visible

• Activity older than seven days naturally rolls out of view

Engineers should review Flow Log Analysis regularly to stay aware of evolving traffic patterns and exposure levels.

Types of Insight Provided by Flow Log Analysis

Identifying True Microservice Relationships

Flow logs reveal which microservices actually communicate at runtime, allowing ACE to unify them into a single application, even when that relationship isn’t apparent from configuration alone.

This provides essential context:

• You see the real application topology, not isolated components

• If a microservice is highly vulnerable, you can understand its impact on the entire application

• Remediation can be prioritized based on application importance rather than individual resources

Visualizing External Exposure and Anomalies

Flow logs also show where connections originate - internal or external - and whether that behavior aligns with your design intent. ACE visualizes these patterns in the Application Discovery graph.

ACE highlights:

• Public IPs communicating with your workloads

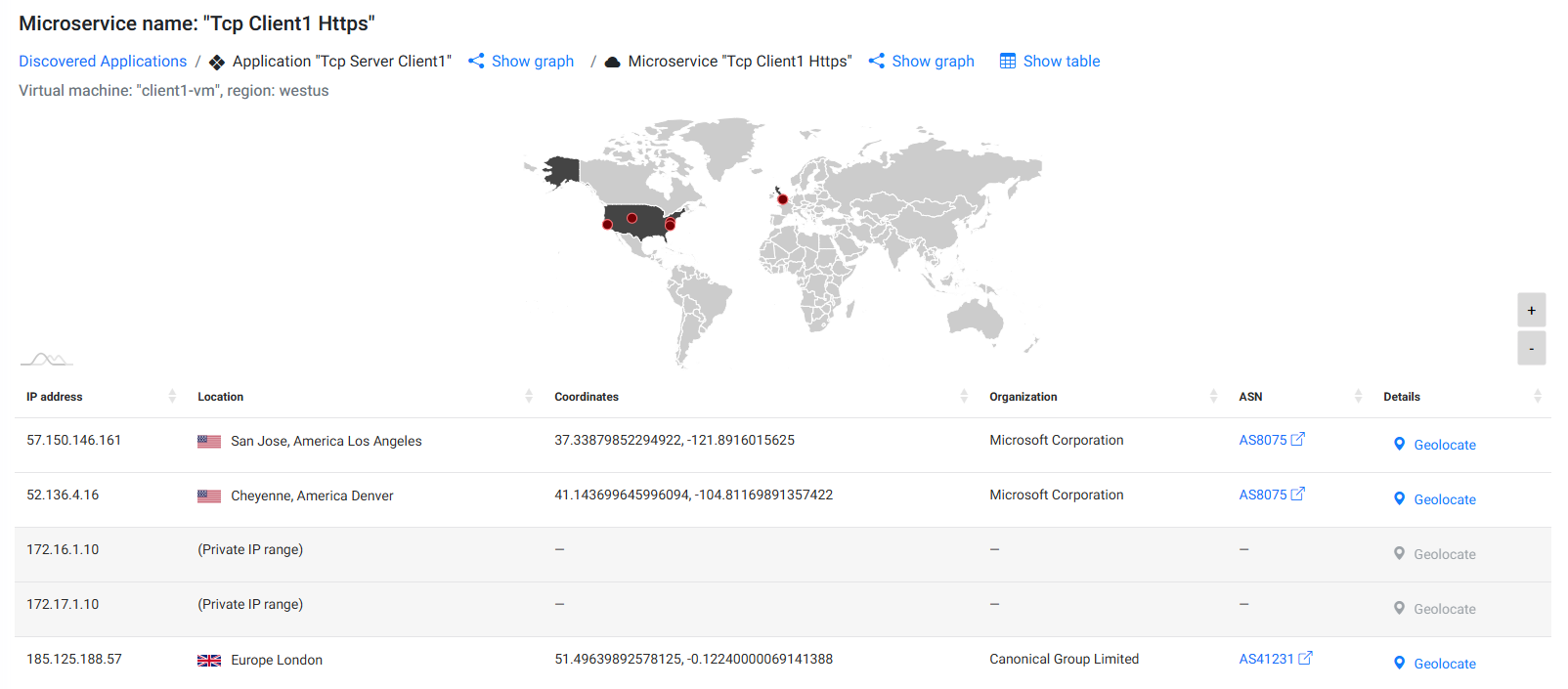

• The geographic source of external traffic

• Traffic volume and frequency

• Signs of unintended exposure, such as activity caused by an overly open security group

Examples:

• A public-facing web service receiving global traffic is expected

• A private internal workload receiving traffic from unexpected regions (e.g., Brazil or China) is an anomaly worth investigating

ACE does not decide whether traffic is “good” or “bad.” It simply reveals what is happening so engineers can determine whether the behavior aligns with expectations.

This makes Flow Log Analysis a powerful tool for uncovering unintended exposure and validating security policies.

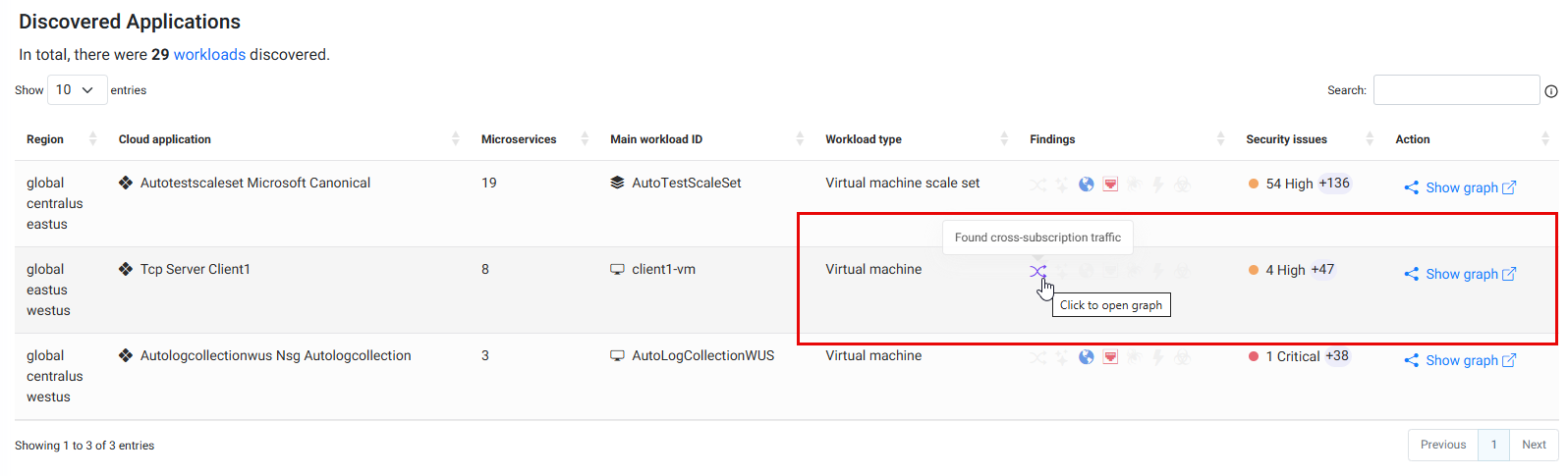

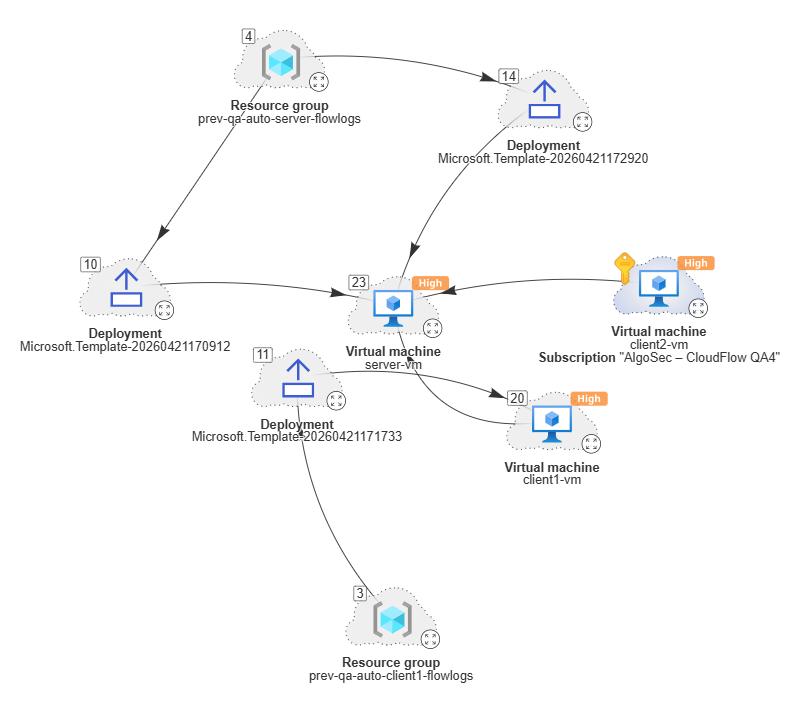

Cross-Account Connectivity

Applications and services are often distributed across multiple subscriptions, tenants, or organizational accounts. Cross-account connectivity refers to network communication between resources that belong to different accounts, subscriptions or projects. This architecture is common in enterprise environments that use shared services, where workloads communicate across account boundaries using mechanisms such as Vnet/VPC Peering, VPN connections or shared platform services.

Flow Log Analysis helps uncover these cross-account communication paths by revealing the actual runtime traffic exchanged between environments. By analyzing flow logs, ACE Cloud App Analyzer can identify communication between workloads and help identify application dependencies, shared infrastructure usage, external exposure and potential attack paths.
