Manage Onboarded Accounts

This topic describes how you manage onboarded Azure subscriptions, AWS accounts, and Google Cloud projects in Cloud Network Security.

Access the Onboarding Management page

  • In ACE Cloud Network Security, hover over the Settings icon at the bottom left of the screen. After the panel expands, click Onboarding.

  • In ACE Cloud App Analyzer, in the Settings/Configurations section of the left side menu, go to Onboarding > Onboarding Management.

The Onboarding Management page is displayed, with a table showing details for each account defined in ACE.

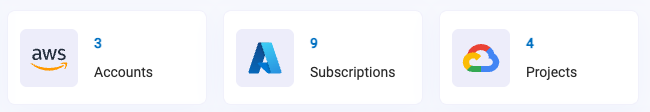

Tip: When your tenant is migrated to Unified Onboarding, the ACE Cloud Network Security Onboarding page displays three summary boxes above the table, each showing the number of onboarded accounts for a specific cloud provider.

These boxes do not appear until your tenant has been migrated.

Note: Click on a column heading to alphabetically sort the table by that column.

Data displayed per resource

Column Name Description
Account Name

Name of the account/subscription/project. To edit the name, see Edit account details.

Note (for AWS):

  • When accounts are onboarded as part of a StackSet in AWS, the account names in ACE are initially set to the AWS account number (ID) of the account being onboarded

  • For individual account onboarding, the account name in ACE is initially set to the AWS account ID of the user who created the account (Stack)
ID ID assigned to the account / subscription / project.
Cloud Provider Name of the vendor.
Onboarding Date

The date the account was onboarded to ACE.

Note: Accounts onboarded before this column was introduced will show N/A.
Last Successful Scan

The date-time that the last data collection completed successfully.

Note:

  • Data collection is done every hour. If you have many accounts, it can take multiple data collection cycles to complete data collection.

  • If data collection has not completed successfully since onboarding, the column displays N/A.
Scan Status

Displays the account status:

  • Success: Last data collection finished successfully

  • Failure: An error occurred during the last data collection or permissions are missing

    Tip: Hover over the status to see a tooltip explaining the reason and details about the error. Click Copy to copy the message.

  • : Data collection is in process

Search and filter accounts

Use the search and filter fields to see a targeted selection of accounts.

Search Search accounts using partial or whole account names or vendor IDs.
Cloud Provider Filter by cloud provider type(s) (AWS, Azure, Google Cloud).
Onboarding date Filter by onboarding date.
Scan Status Filter by account onboard status(es) (Active, In progress, Failure).

Edit account details

Note: You can edit the name of all account types, but only credentials for Azure subscriptions can be modified.

Do the following:

  1. In the Name column, click the account name you want to edit.

    An account / subscription/ project window appears, based on the vendor selected.

  2. Edit the account / subscription/ project name.

  3. For Azure only: Update Application ID and Application Secret.

  4. Click Save to save the changes.
