Application flows

The application's FLOWS tab enables you to manage an application's traffic flows.

Flows describe traffic to and from servers, represented by network objects, via a specific service. Flows may also specify a user or network application, and include other fields, such as comments.

Note: Adding, removing, or editing an application's flows changes the application's revision to draft. After making a change to the application flows, you’ll see the draft status on the Dashboard tab of the application:


The flow is not updated in the related network security policy until the draft revision is returned to active. For more details, see Apply application drafts.

Tip: AppViz also enables you to import flows from a discovery server or a CSV file. Importing flows also matches, or updates matching details, with AppViz applications. For more details, see Discover applications.

Accessing application flows

  1. From the AppViz home screen, click Applications in the left navigation.
    The applications are listed in the left navigation.

  2. Click on the required application.

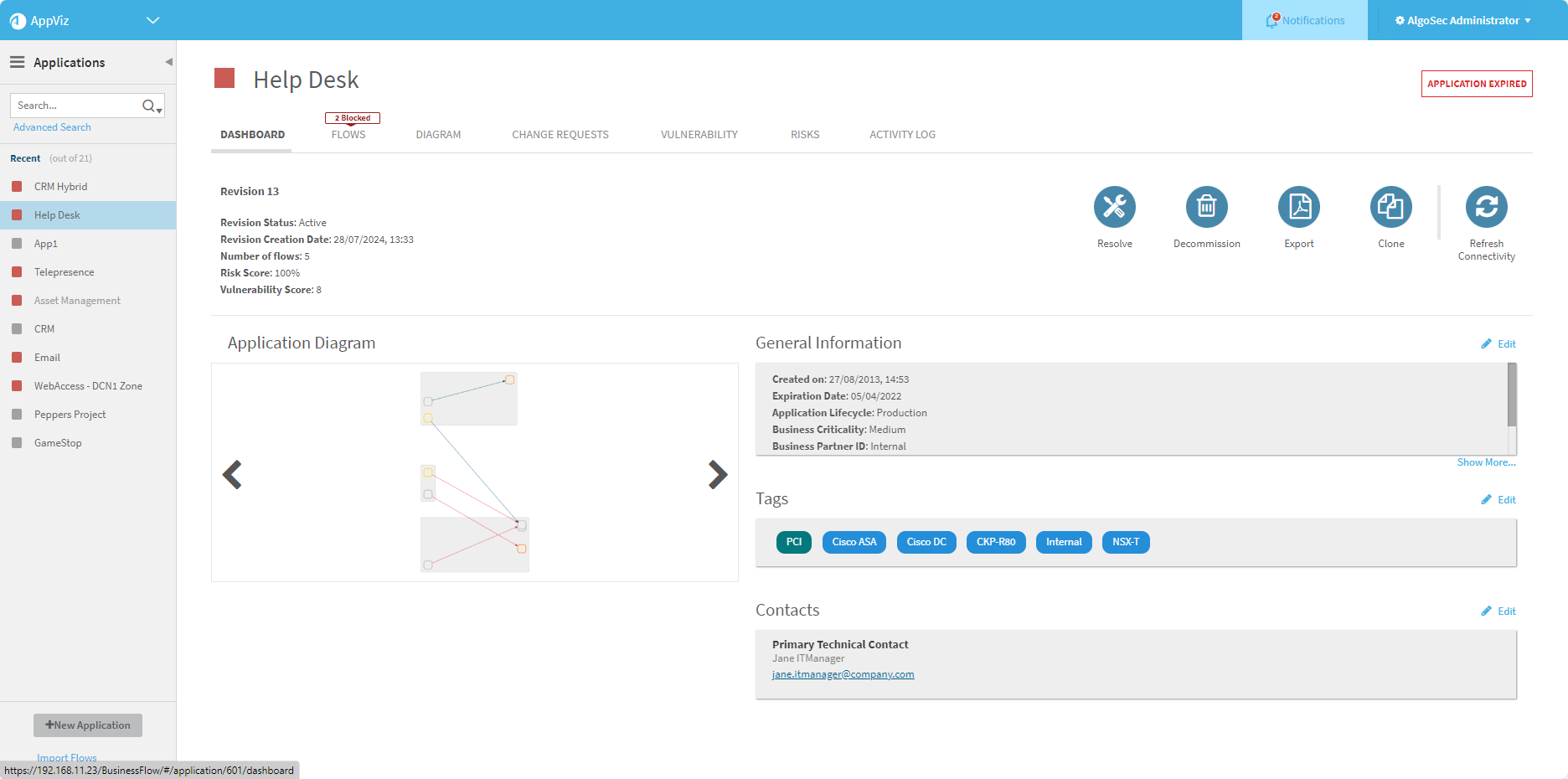

    The application's dashboard is displayed.

  3. Click on the FLOWS tab.
    Three groupings of Application Flows (Application flows, Shared Flows, Subscribed Flows) for the application in focus are displayed with an indication of the number of flows of each type.

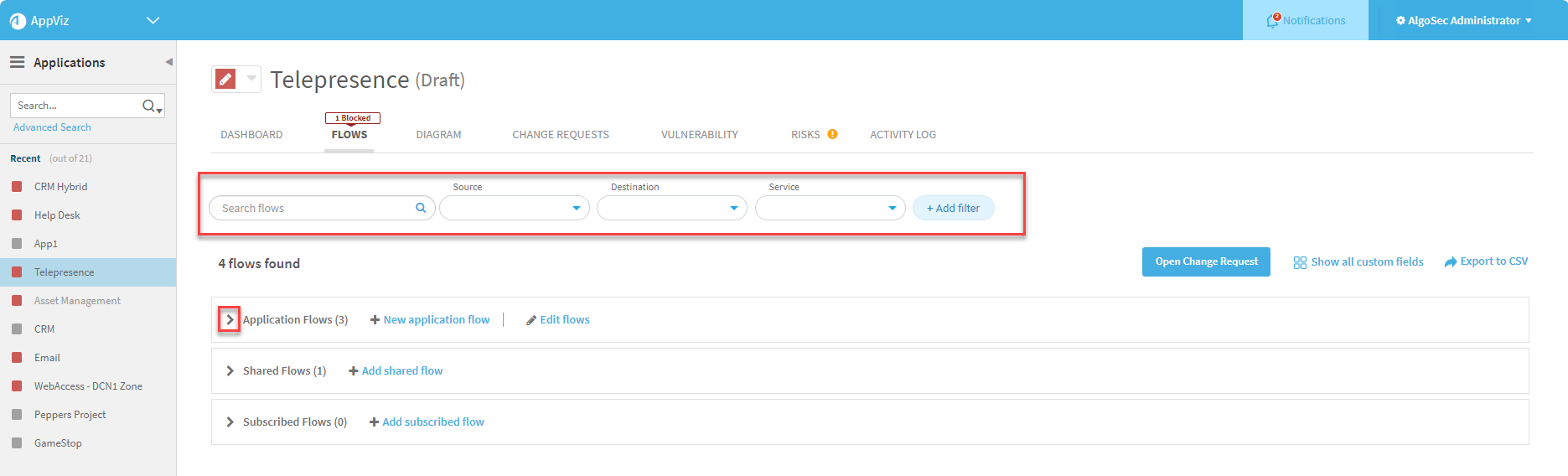

  4. Expand or collapse each table section to expose or hide the contained flows.

  5. Use the filters above the Application Flows to display specific flows of interest. For more details, see Filtering Flows.

Flow types

AppViz application flows include the following types:

Application flows Flows that are custom-built for a specific application.
Shared flows

A semi-custom flow that can be relevant for many applications.

Shared flows are templates with empty source and destination values, which are provided by a subscribing application.

Note: For shared flows in which user awareness is enabled, the User field will be treated the same way as the Source field. When the source is the placeholder, the user will also be a placeholder.
Subscribed flows An instance of a shared flow that's customized for a specific application, with its source and destination fields provided by the current application.

Flows tab interface

The FLOWS tab displays application flows and details in three sections (Application Flows, Shared Flows, Subscribed Flows) which you can expand to view or collapse by clicking the expand arrows on the left of each type.


On an expanded table, you can:

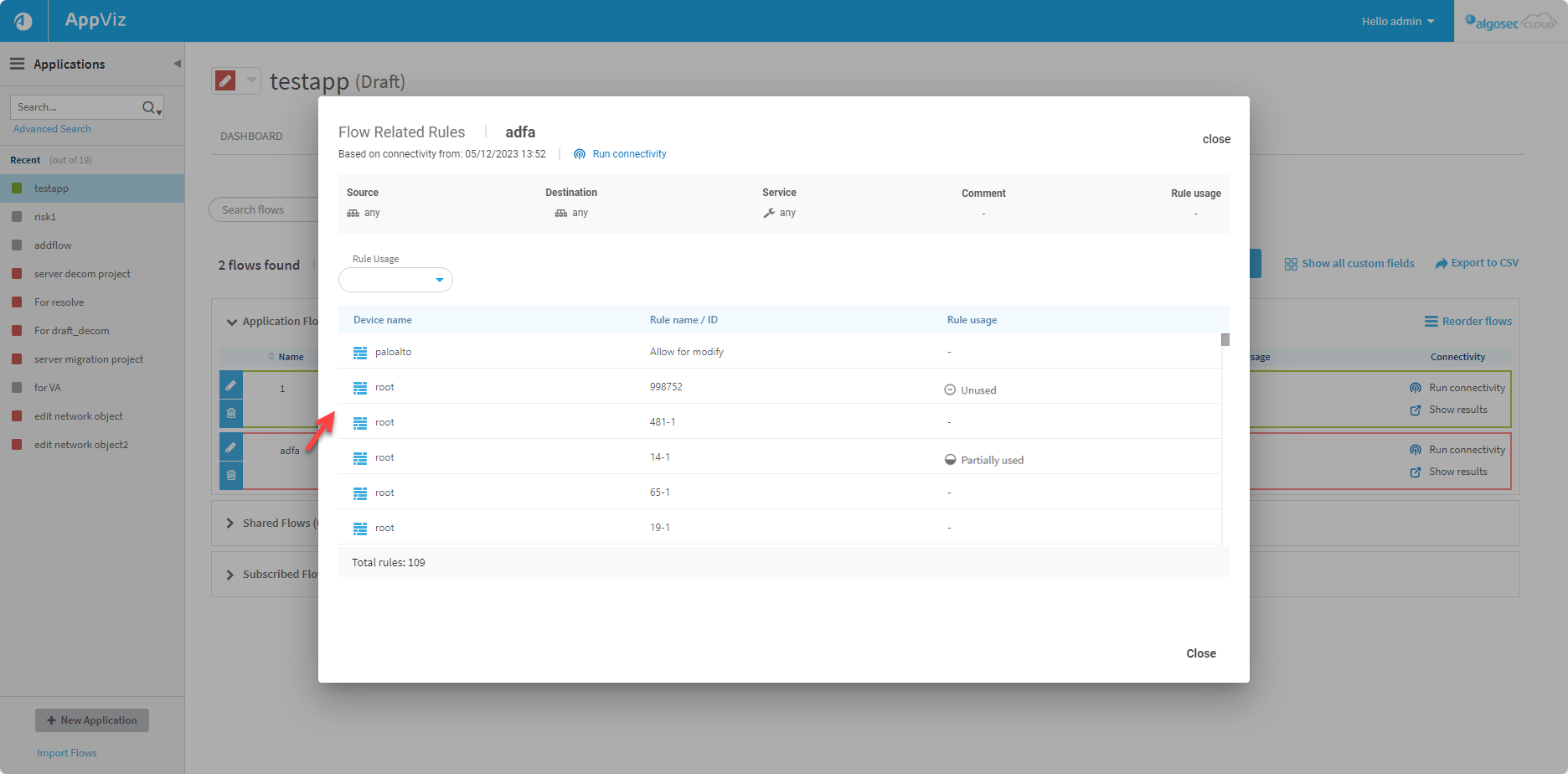

  • Click the flow Name to see insights about flow related rules including rules covered by the flow and the rule usage.

    • -: Rule is used

    • Partially used: Some rules are unused and the remaining are used

    • Unused: No rules are used

    Tip: To set the number of days before which rules are considered as unused, use the Days_To_Consider_Rules_As_New parameter.

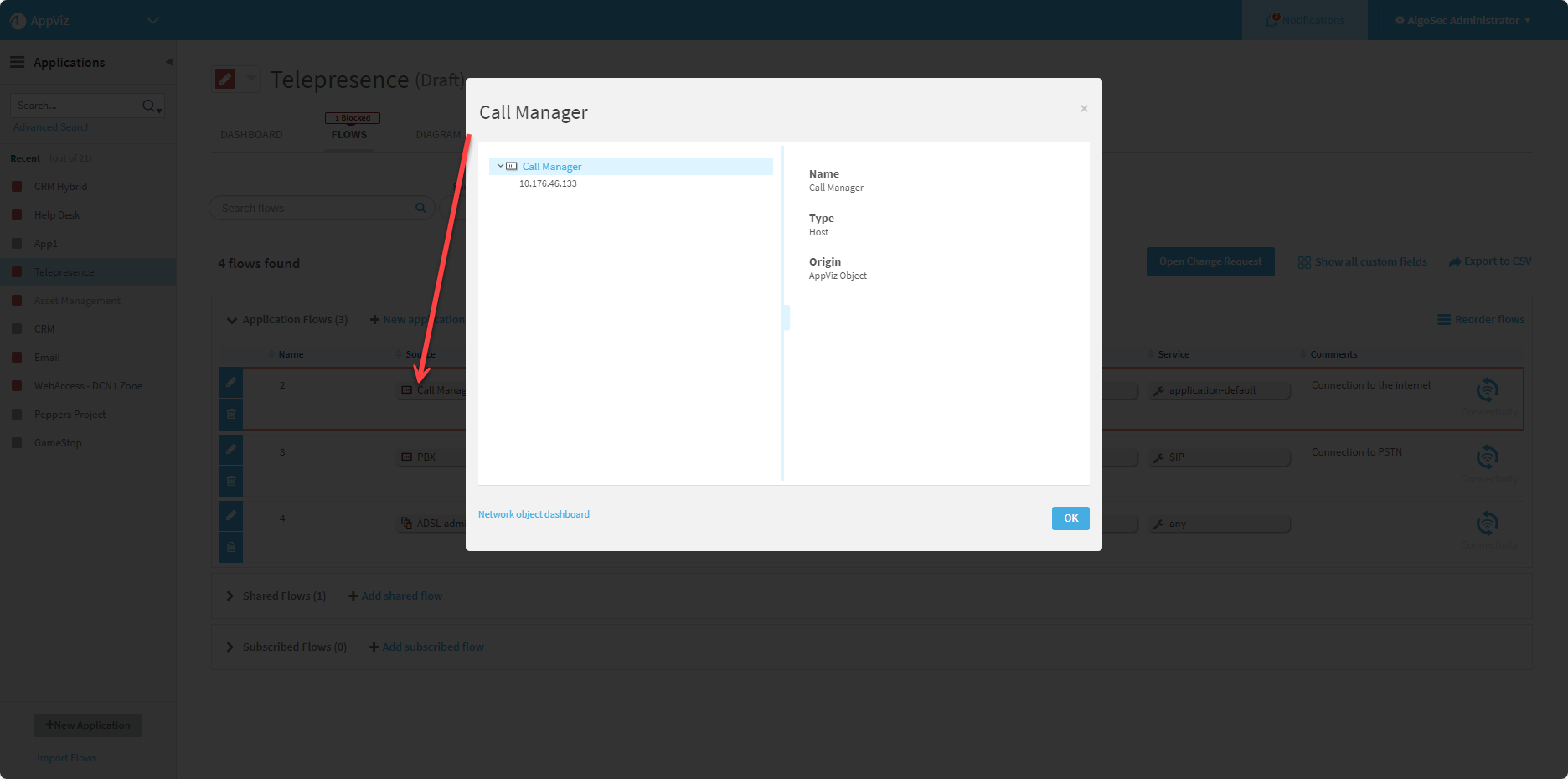

  • Click a network object to display further details, including its name, type, origin, and addresses.

  • Click a column heading to sort the table by that column, and click it again to reverse the sort order.

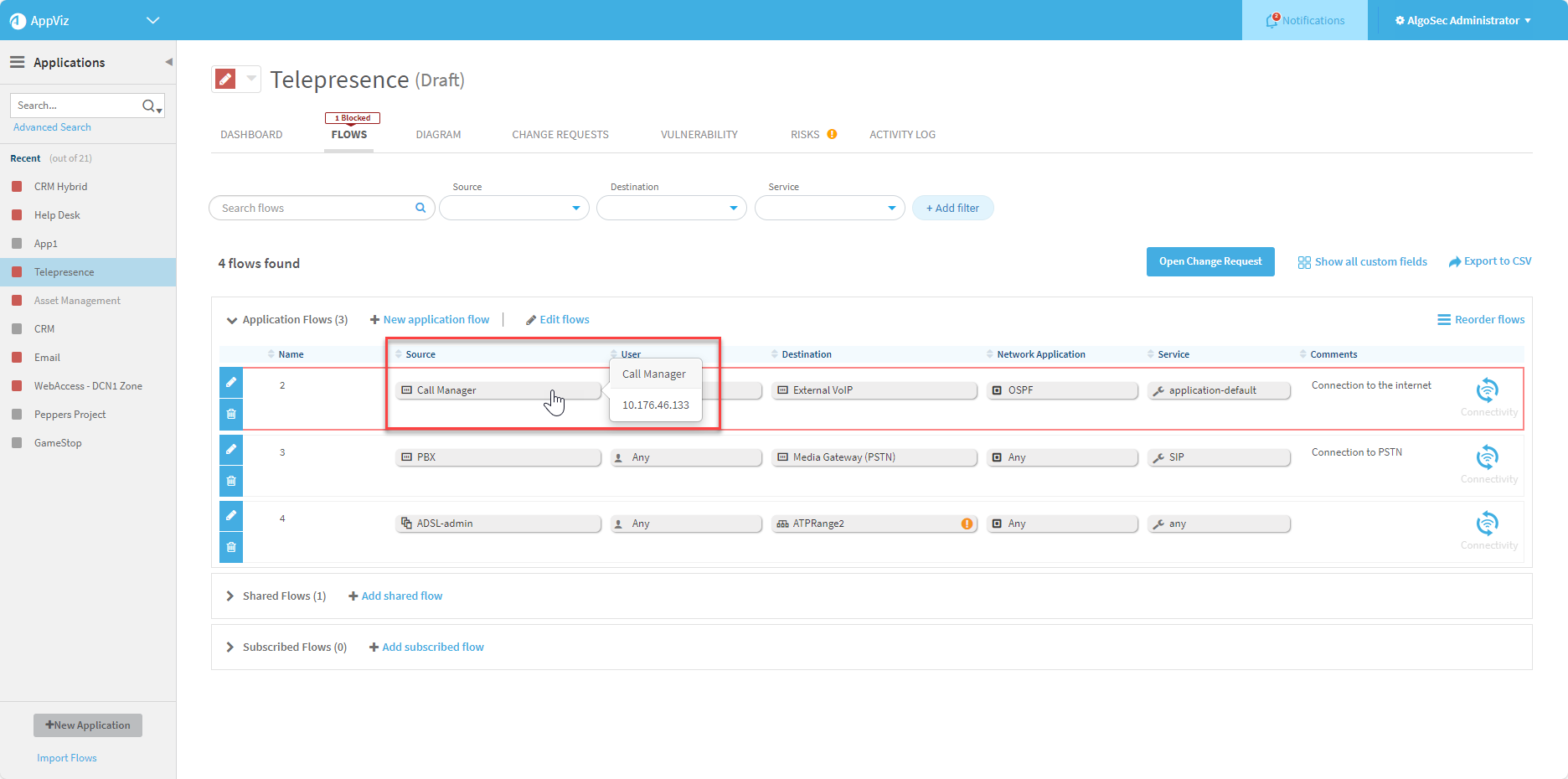

  • Hover over source, destination or service to display expanded information.

  • Use the features listed here:
    ButtonDescription

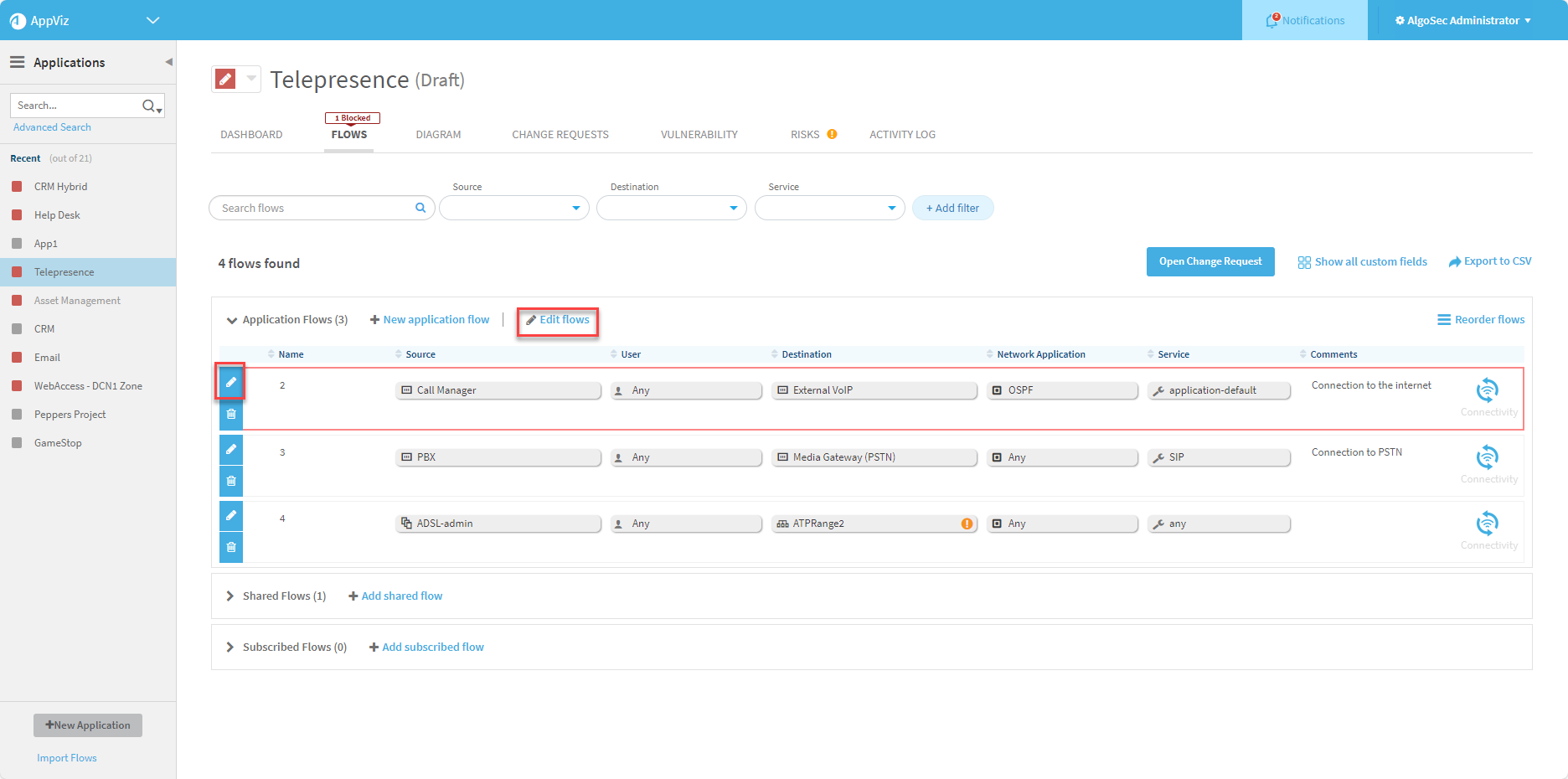

    Edit a single flow.

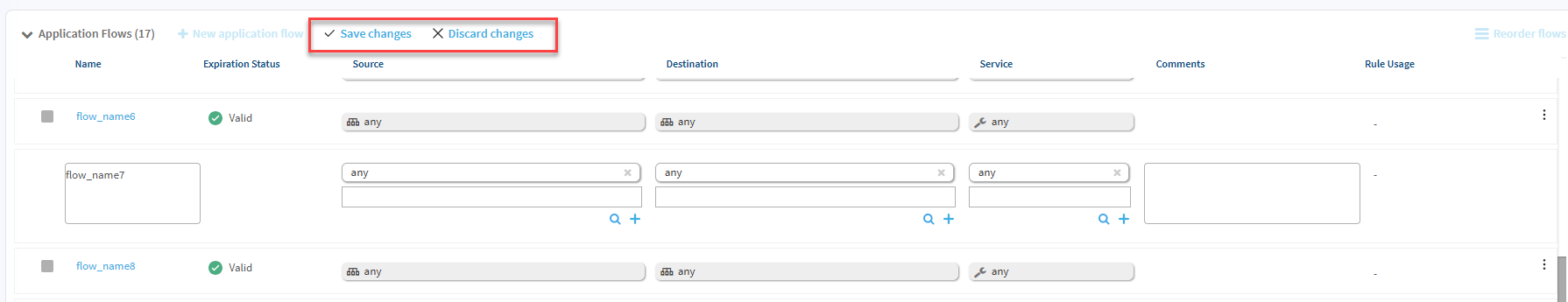

    After making changes click:
    to keep the changes or

    to discard the changes.

    Edit multiple (or single) flows
    Delete a flow.
    Check connectivity of an application flow by clicking the run connectivity to the right of each flow.
    Opens the Traffic Simulation Query results in AFA
    Opens the reorder flows interface window. Drag and drop the flows in the required order.
    Export the flows to a CSV

For more details, see:

Filtering Flows

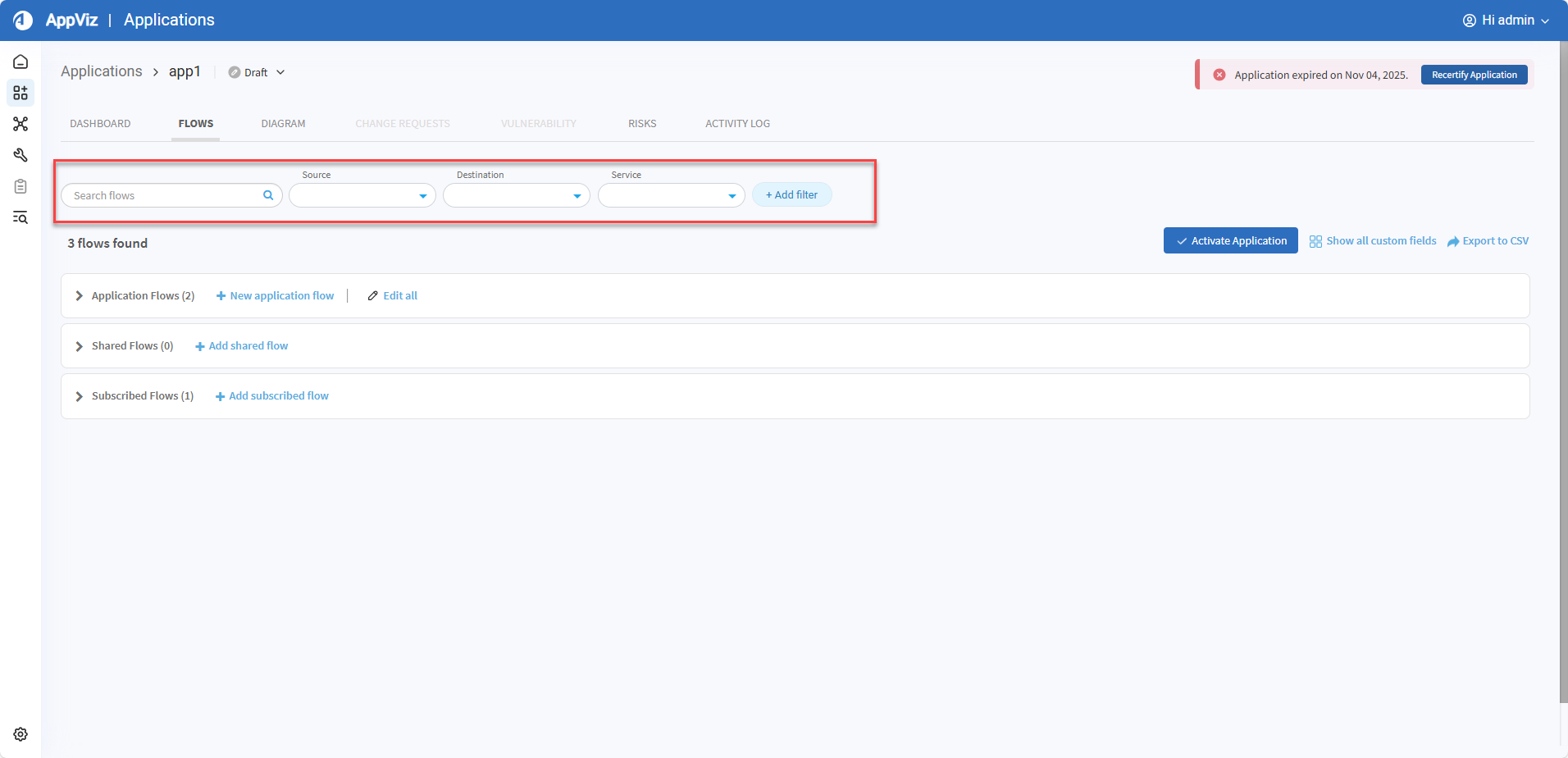

Use Filters to isolate the flow or flows of interest:

  • Use the Search Flow filter to search for a flow by flow name, source, destination, service or comment.

    Tip: Start typing text into the Search field. Click in the checkbox of the required value when it appears. Then start typing another search topic, for searching multiple items.

  • Use the Source, Destination and Service filters to locate the required flow quickly.

    • Start typing a name the required value and check the required value from a presented list
      or

    • Click the Lookup icon and choose a value from the values presented in the list that opens.

    Note: Each filter accepts multiple values.

  • Use the Custom Fields filters.

  • Use the Network Application and Network User filters. (To enable these, see Enable / disable user and network application awareness

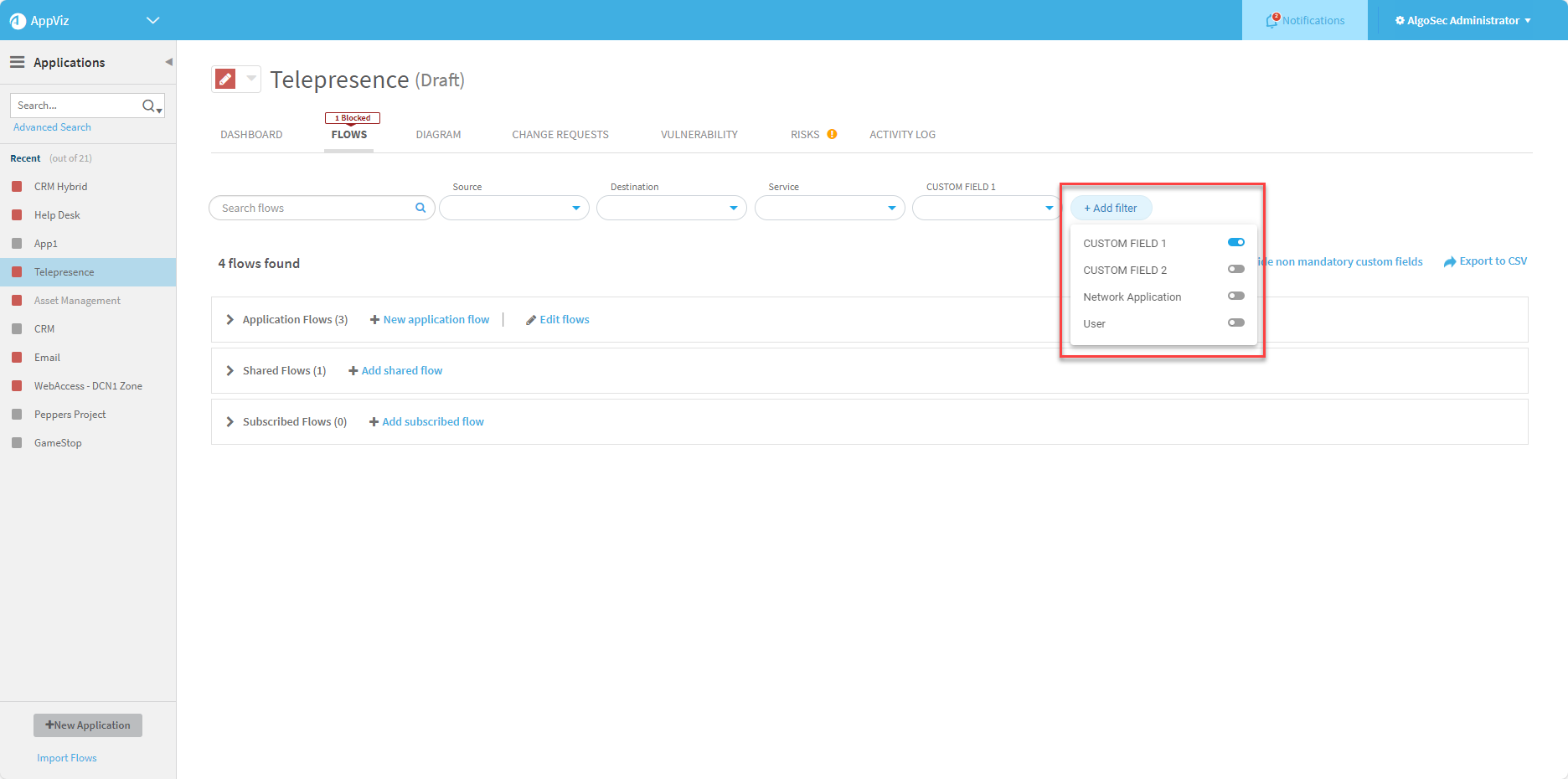

  • Use the +Add Filter button to enable/disable additional filters

    ​

  • Click Clear Filters to start a fresh search/filtering process.

Note:

  • Saved filters apply across all applications for the user that enabled them.​

  • Filters added using the +Add filter button can only be enabled/disabled individually.​

  • Date filtering is by range only. To filter for a single date, enter same date in the to and from fields.

Flow connectivity status

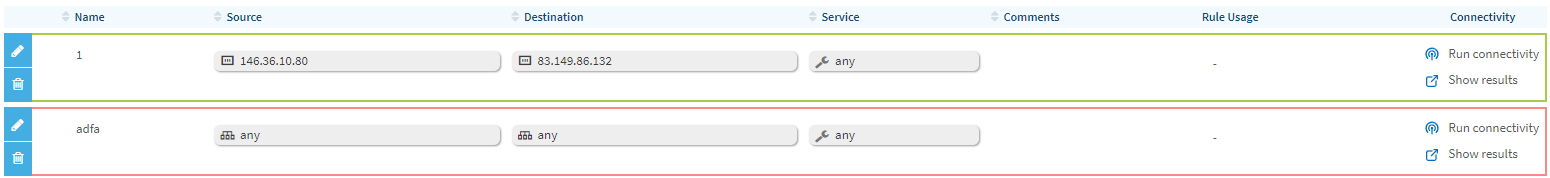

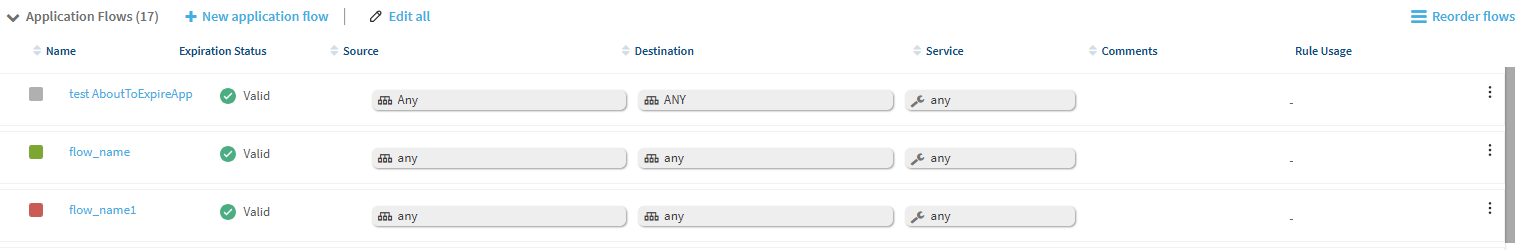

Every flow has a connectivity status. The traffic each flow represents may be allowed or blocked by the current network security policy. For each flow for which the connectivity status is available, the flow is encircled with a with a red or green outline. See the colors table below.

Note: The connectivity status of each flow contributes to the connectivity status of the application. For more details, see Business applications.

Allowed

Blocked or Partially blocked.

No strip

No connectivity information

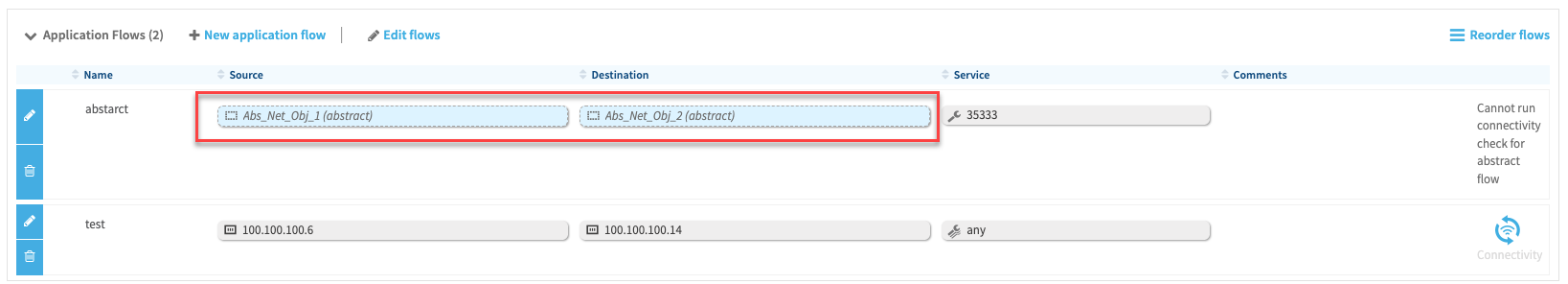

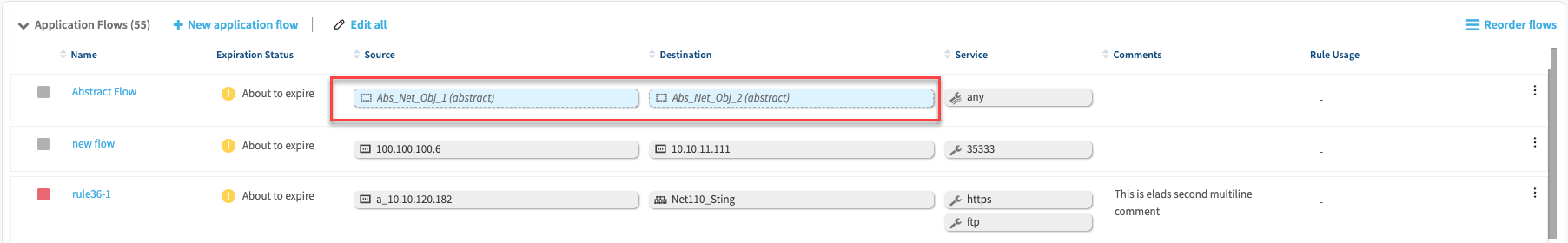

Note: Abstract flows are indicated with pale blue stripes, but this is not a connectivity status for the flow. An abstract flow is a flow that does not represent any real traffic. Therefore, connectivity information is not relevant. For details, see View a network object.

Add flows to your application

This procedure describes how to add an application or shared flow to your application.

Tip: Alternately, subscribe to another application's shared flows. For more details, see Subscribe to another application's shared flows .

Do the following:

  1. In the left panel, click on the application to which you want to add a flow.

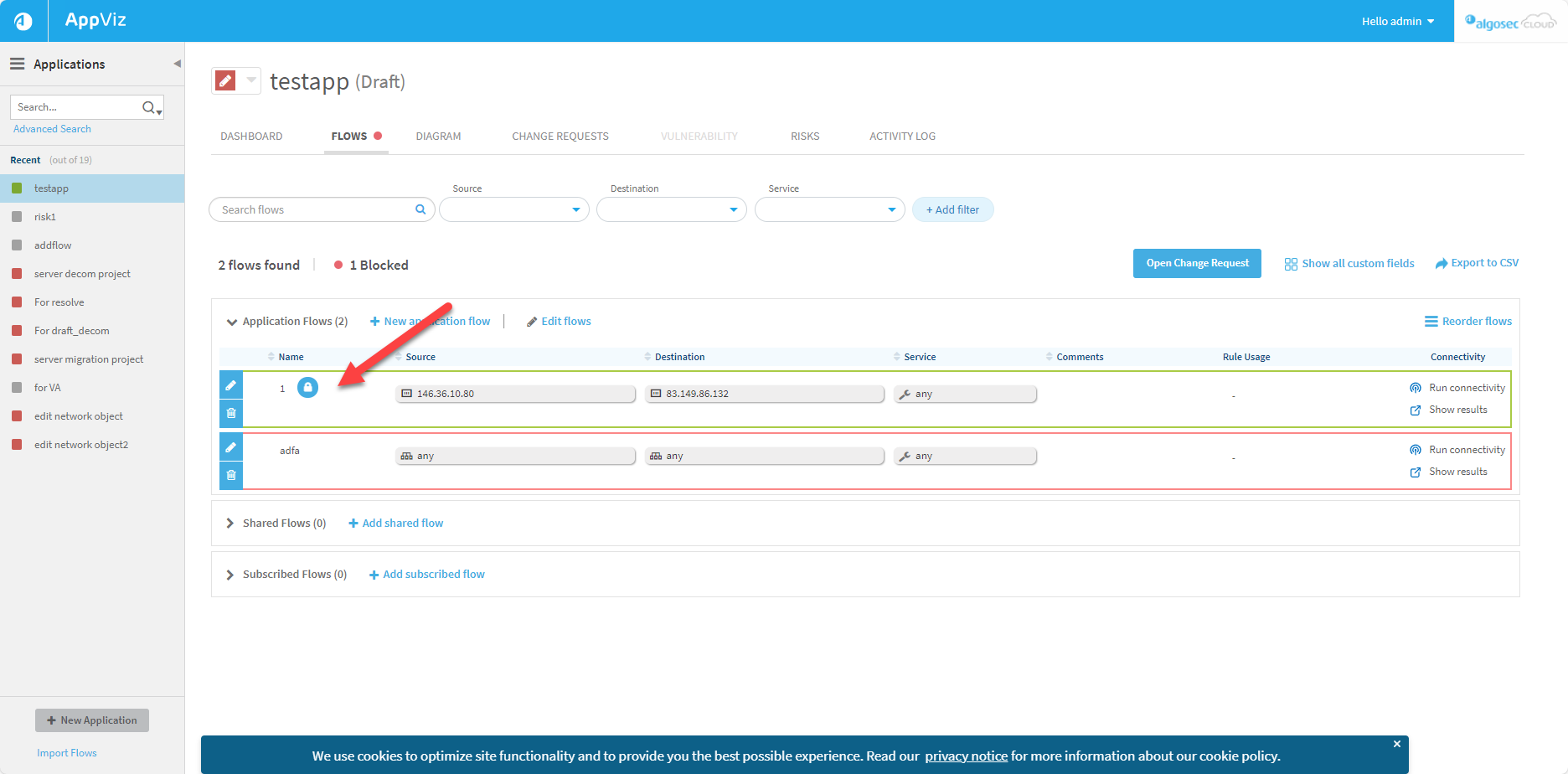

  2. Click the FLOWS tab, and then, in the relevant section, click +New application flow, +Add shared flow or +Add subscribed flow..

  3. For +New application flow: If a draft is already created for the flow you want to edit, AppViz allows you to decide whether to discard the existing draft and start over or to continue working it. This gives you flexibility and control over how you want to manage your flow edits.

    Click View Draft. AppViz will open the draft for you to work on it.

    Click Continue Here to continue where you are. Changes you make will overwrite the existing draft.

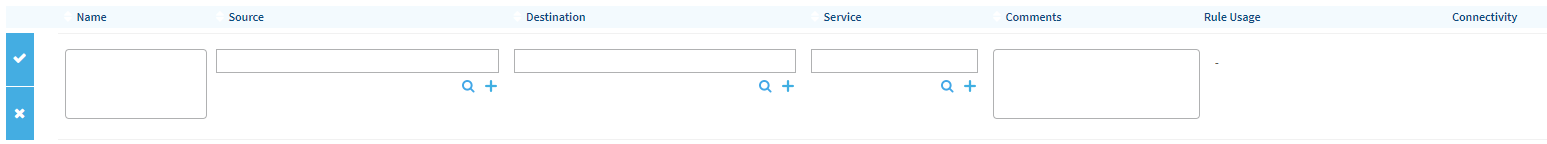

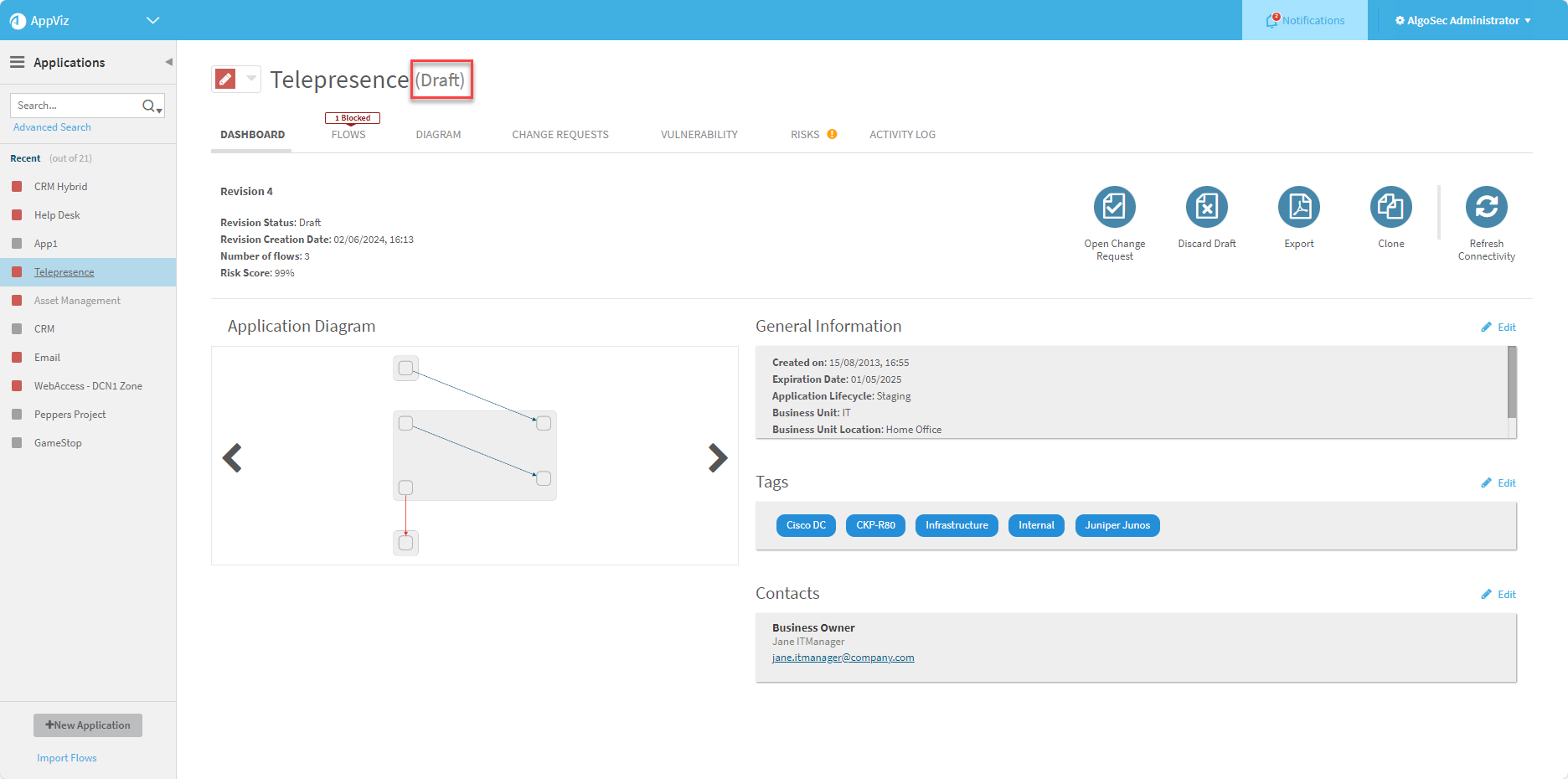

  4. A blank editable flow form is displayed above the other flows (if existing) of the relevant section. The other flows for the section are displayed as disabled for editing.

  5. After editing and accepting the new flow, you can re-order the flows:

    1. display by clicking on the .

    2. In the window that opens, drag-drop objects into their new display order.

    3. Click Done.

Note: Objects viewer has no permission to see are represented by the lock-icon indication with a hover-tool-tip informing them that an object that they do not have permission to view due to permissions filtering is present in the flow. For more about object permissions see Managing Object Permissions Using Tags.

Adding a shared flow

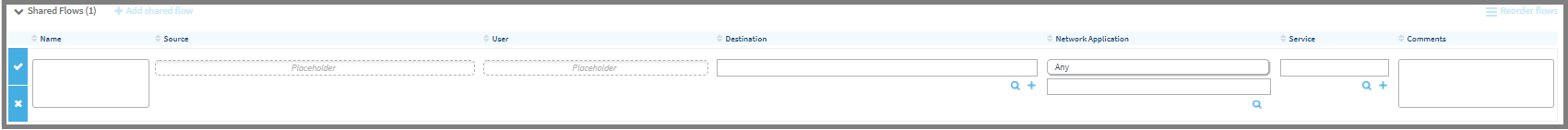

  1. In the Shared Flows section, click on +Add shared flow. For a shared flow, click on the source or destination placeholder. The placeholder is the field that is customizable for any application subscribing to it. Follow the instructions in the table above.


    Note: When user awareness is enabled, the User field will be treated the same way as the Source field. When the source is the placeholder, the user will also be a placeholder.

  2. Complete the fields as needed. For details, see Flow fields.

    The flow is updated, and this version of the application is saved as a draft revision.

    Note: Whenever a flow is added or updated, the application is saved as a draft revision and (Draft) is indicated next to the application's name in the application's dashboard.
    The Save and Apply Draft option is disabled when the application has a revision pending implementation.

  3. To save changes and apply the draft, do the following:

    •  The Apply Draft dialog is displayed, describing the FireFlow change request that will be created to add or remove traffic flows for the application in the network security policy. If traffic flows have been removed from the application, but the traffic intersects the needs of another application, a FireFlow change request will not be created to remove the traffic.

    •  Click OK.

      The flows are updated and the draft is applied. This may take a few minutes.

Name

Type the name of the flow.

Source

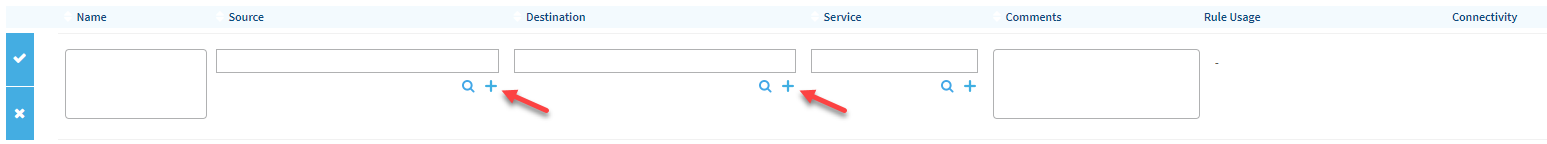

Type the flow's source, or utilize the following features to aid you in selecting a source:

  • Click the field to view recent objects, and then select the source from the list.
  • Start typing, and then select the source from the list of auto-completed options.
  • Use the Network object lookup wizard. For details, see Business applications.

  • Create a new object. For details, see Add a new network object.

    Note: represents an object for which the viewer does not have permission.

User

Type the flow's user, or utilize the following features to aid you in selecting a user:

  • Click the field to view recent users, and then select the user from the list.
  • Start typing, and then select the user from the list of auto-completed options.

Note: "Any" is the default value in the User field.

This field only appears when user awareness is enabled. For more details, see Configure applications.

Destination

Type the flow's destination, or utilize the following features to aid you in selecting a destination:

  • Click the field to view recent objects, and then select the destination from the list.
  • Start typing, and then select the destination from the list of auto-completed options.
  • Use the Network object lookup wizard. For details, see Business applications.

  • Create a new object and add it to the flow. For details, see Add a new network object.

    Note: represents an object for which the viewer does not have permission.

Service

Type the flow's service, or utilize the following features to aid you in selecting a service:

  • Click the field to view recent objects, and then select the service from the list.

  • Start typing, and then select the service from the list of auto-completed options.

  • Use the Service Lookup wizard. For details, see Business applications.

  • Create a new object and add it to the flow. For details, see Add a new service.

    Note: Additional services cannot be added to a flow that already has the application-default service (this service represents the default service behind selected network applications). You can click x in the Service column to remove this service.

Network Application

Type the flow's network application, or utilize the following features to aid you in selecting a network application:

  • Click the field to view recent network applications, and then select the network application from the list.
  • Start typing, and then select the network application from the list of auto-completed options.
  • Use the Network application lookup wizard. For details, see Business applications.

Note: "Any" is the default value in the Network Application field.

This field only appears when application awareness is enabled. For more details, see Configure applications.

Comments

Type a comment for the flow. This field is optional.

Any custom field

There may be other flow fields if custom fields have been added. For more details, see Custom fields.

To re-order the flows in the application, drag and drop a flow by this icon. The icon appears to the left of a flow when you hover over it.

To add a new network object:

  1. Click +New.

    The Add New Network Object window appears.

  2. Select the Type of network object: Host, Range, Group or Abstract. For more details, see Network objects.

  3. In the designated fields, type the following information for the new network object:
    • Name
    • IP Address, IP Addresses, or Members. Abstract objects do not have an address until conversion.)

  4. Click OK.

    The new network object is added to the field.

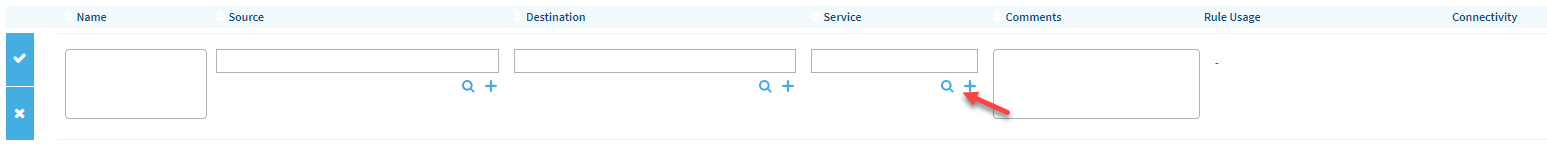

To add a service to a flow:

  1. Click Add New Service.

    The Add New Service window appears.

  2. In the designated fields, type the following information for the new service:

    • Name
    • Protocol
    • Port

    Note: If you've defined the Protocol as ICMP, use the Port field to define the ICMP type.

  3. To add additional services to the service object, do the following:

    1. Click Add new service.

      Additional Protocol and Port fields appear.

    2. Complete the fields.
    3. To remove a service, click .
  4. Click OK.

The new service object is added to the field.

Edit application flows

Only for application flows (not for shared or subscribed flows)

To edit one or more flows at a time:

  1. View the application for which you want to edit a flow. For more details, see Business applications.

  2. Click the Flows tab.

    The Flows tab appears.

  3. To edit application flows:

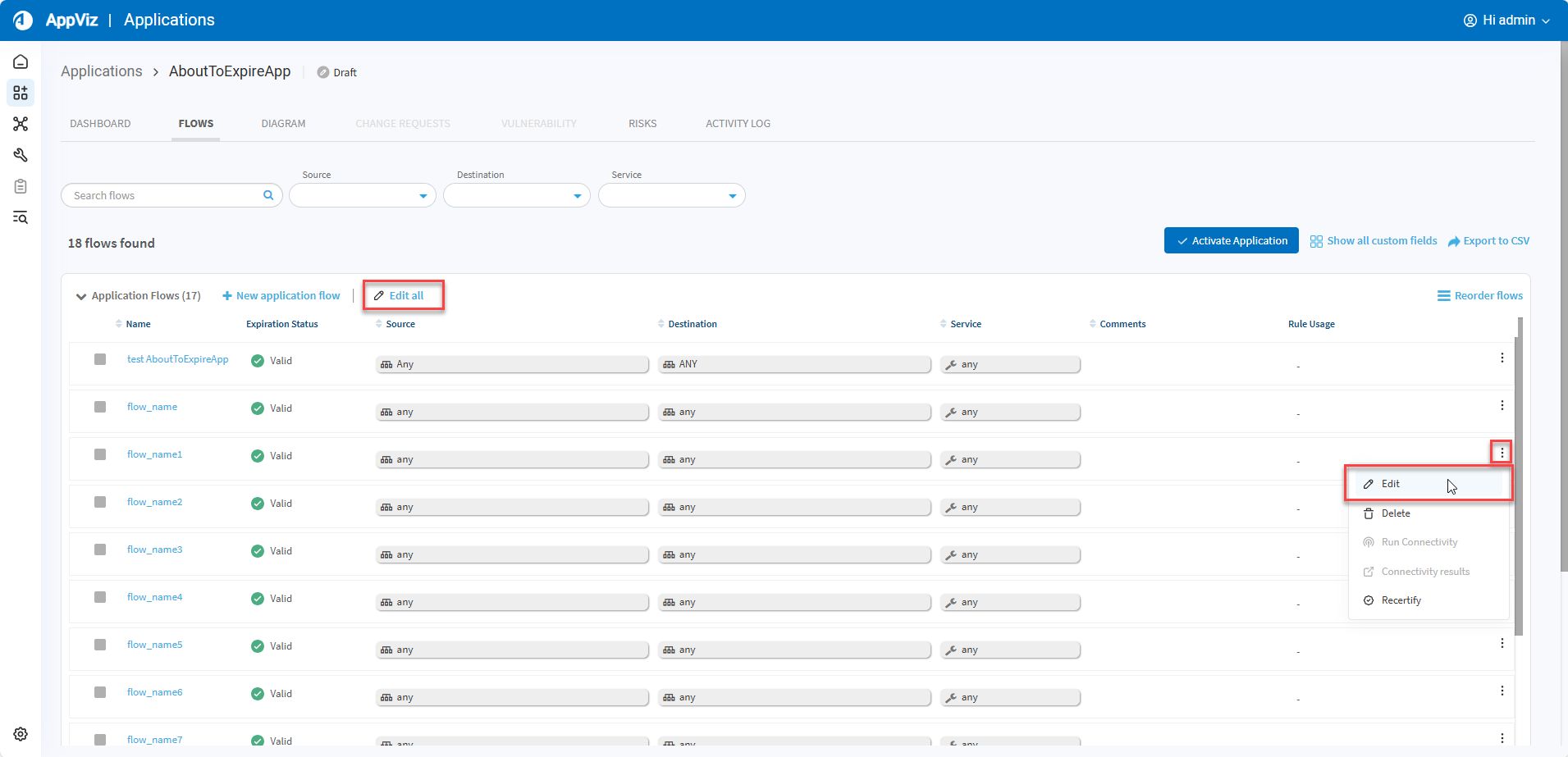

    • To edit a single flow: click the pencil button at the left of the flow.

    • To edit multiple flows: click .

  4. If a draft is already created for the flow you want to edit, AppViz allows you to decide whether to discard the existing draft and start over or to continue working it. This gives you flexibility and control over how you want to manage your flow edits.

    Click View Draft. AppViz will open the draft for you to work on it.

    Click Continue Here to continue where you are. Changes you make will overwrite the existing draft.

  5. The flow(s) for the application appears in an editable format.

    Complete the fields as needed. For details, see Flow fields.

  6. To save the flow changes, click Save Changes.

Reordering flows

To reorder flows of any type:

  1. Select the flow type you want to reorder.
  2. Click .
  3. In the Reorder application flows window, drag and drop the desired flows up or down and then click Done.

  4. Click Save Changes.

Save Flow Changes

  • To save the flow changes, click Save Changes.

    The flow is updated, and this version of the application is saved as a draft revision.

  • To save changes and apply the draft, do the following:

    1. Click Save and Apply Draft.

      Note: The Save and Apply Draft option is disabled when the application has a revision pending implementation.

      The Apply Draft dialog is displayed, describing the FireFlow change request that will be created to add or remove traffic flows for the application in the network security policy. If traffic flows have been removed from the application, but the traffic intersects the needs of another application, a FireFlow change request will not be created to remove the traffic.

      For more details, see Business applications.

    2. Click OK.

      The flows are updated and the draft is applied. This may take a few minutes.

Remove flows from your application

To remove a flow:

  1. View the application for which you want to remove a flow. For more details, see Business applications.

  2. Click the Flows tab to view the flows.

  3. Click on the row of the flow you want to remove.

    Note:AppViz detects flows being utilized in other applications. If you attempt to remove a flow from the current application, AppViz will promptly notify you if the flow is being used elsewhere. This prevents accidental removal of critical components and ensures the integrity of your workflows.

    If a draft is not already created for the flow, this confirmation message is displayed.

    If a draft is already created for the flow, you want to remove, this confirmation message appears letting you know that the draft will be overwritten.

  4. Click OK or Delete if you are sure you want to remove the application flow from the specified application.
  5. Follow the Save Flow Changes procedure.

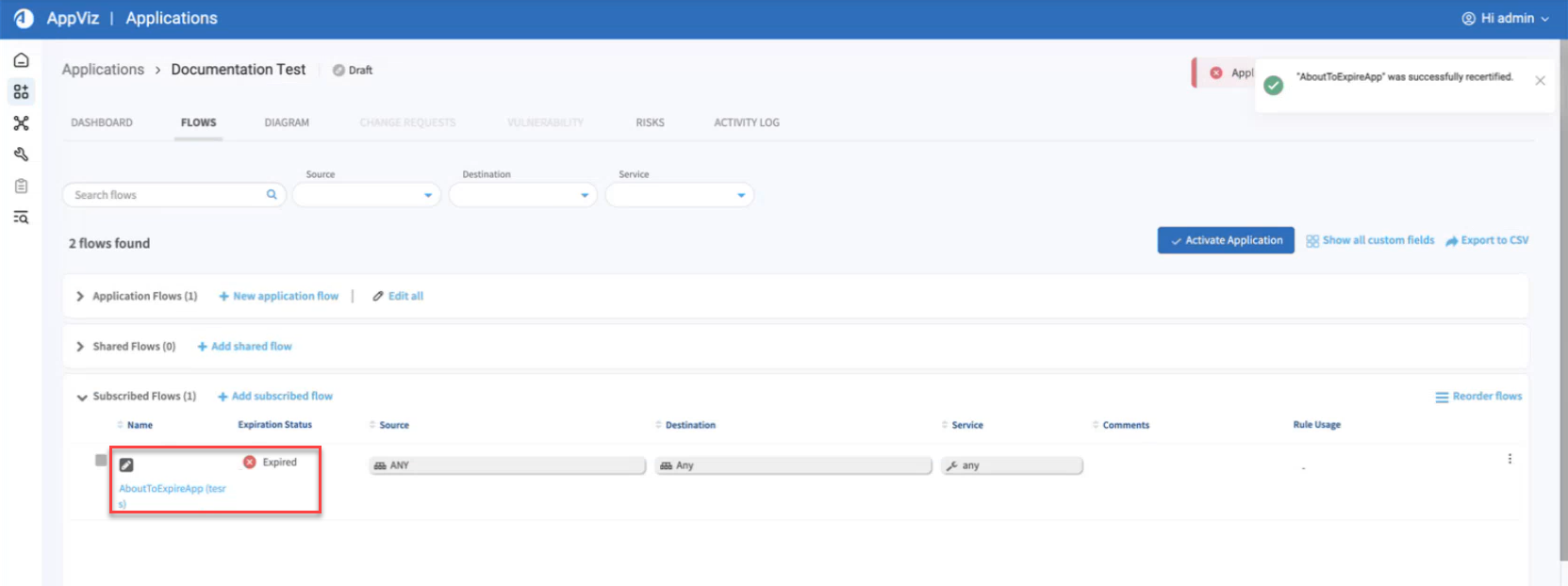

Subscribe to another application's shared flows

Applications can subscribe to another application's shared flows. The subscribing application specifies a custom value for the shared flow's placeholder/missing field. For more details, see Add flows to your application.

By default, the application containing the shared flow is responsible for all of the shared flow's subscriptions. If desired, you can configure AppViz to treat the applications subscribed to the shared flow as responsible for the traffic. For more details, see Configure advanced AppViz properties

To subscribe to an application:

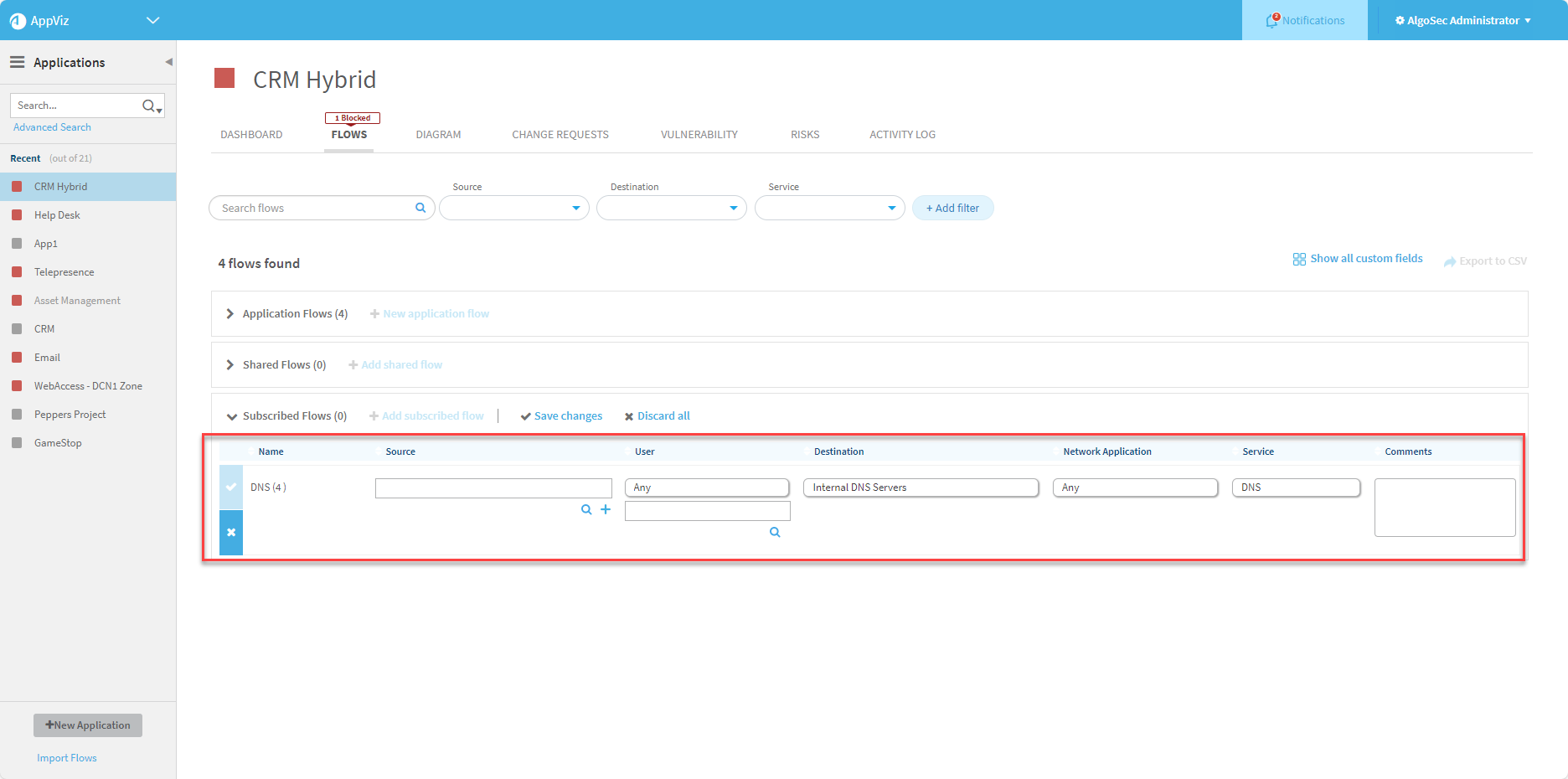

  1. View the application for which you want to add subscribed flows (the "subscriber" application). For more details, see Business applications.

  2. Click the Flows tab.

    The Flows tab appears.

  3. Click Edit Flows.

    All the flows for the application appear in an editable format.

  4. In the Subscribed flows section, click +Add subscription flow.

    The Add Subscribed Flows window is displayed.

  5. Next to the desired application, click to expand the list of its flows.

    The application's flows appear.

  6. Click to select one or more flows.

  7. Click Add Subscriptions.

    The subscribed flows appear in the application's Flows tab.

  8. Complete the required fields as needed. For details, see Add a new network object.

  9. Click Save Changes.

    A confirmation message appears.

  10. Click Save.

Verify flow connectivity

Verifying flow connectivity checks whether the network security policy allows the traffic that the flow specifies. Additionally, it creates and updates the business application field of the flow (a.k.a. rule) visible throughout ASMS systems with AppViz.

See Business application visibility.

To verify flow connectivity:

  1. View the application which contains the flow for which you want to verify flow connectivity. For more details, see Business applications.

  2. Click the Flows tab.

    The Flows tab appears.

  3. Click Refresh Connectivity next to the flow.

    AppViz checks whether the network security policy allows the traffic flow. This may take a few minutes, depending on the complexity of the flow and network policy.

    If the flow is blocked, red stripes appear around the flow.

    Note: Clicking the refresh connectivity icon also sets or updates Business Application Visibility throughout ASMS. See Business application visibility.

  4. To view details regarding the flow's connectivity, click .

    A new window opens with details of the traffic simulation query from AlgoSec Firewall Analyzer.

    Note: If is not enabled for a flow, the last connectivity check failed or has expired. If you run a new check, the link will be re-enabled.

Export application flows to CSV

You can export an application's flows to a CSV file.

Note: If desired, you can configure all flow exports to include connectivity information. For more details, see Configure advanced AppViz properties

To export an application's flows:

  1. View the application for which you want to add a flow. For more details, see Business applications.

  2. Click the Flows tab.

    The Flows tab is displayed.

  3. Click .

    The CSV file is exported.

    Your browser will prompt you to open or save the file.
